Alignment Tapes
Alignment Cassette Tapes from A.N.T. Audio:
1) L03 - Level Setting Tape 250nWb/m (DIN) 315 Hz
2) L03VU - Level Setting Tape 160nWb/m (DIN) 315 Hz ("0VU" tape)
3) L04 - Level Setting Tape 200nWb/m (ANSI) 400Hz

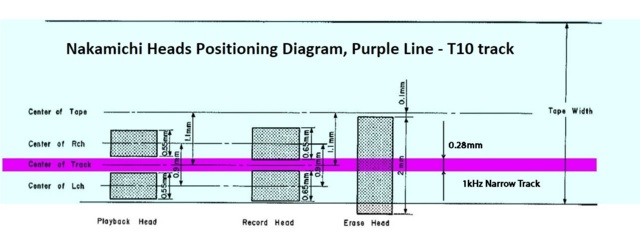

4) T10 - Head Height Alignment Test Tape 1kHz narrow track (a functional equivalent of the Nakamichi DA09087B/DA09007B cassettes).
5)S30B - Speed and W&F Test Tape 3000 Hz -10dB DIN (120us EQ, Type I C60 cassette)
6) S30X - Speed and W&F Test Tape for 9.52cm/s ("Double" Speed, 3000 Hz -10dB DIN (50us EQ, Type II C90 cassette)
7) U04103-70N - New version of "Combination" Cassette, Level 400Hz (200nWb/m ANSI), Azimuth 10kHz, Speed/W&F 3kHz, (70us EQ, Maxell UDII-CD100 cassette). Longer sections, very good quality shell and tape (12um tape, the same as in C90 cassettes), at last a decent replacement for the BASF cassettes used previously.
All tapes (except the T10) are recorded on the specially modified Revox B215 tape transport in a full-track configuration, using quality blank cassettes and the special Full-Track amorphous recording head from JRF Magnetics. Alignment tapes from BASF, STL, Teac, ABEX and Sony are used as primary references.
Each tape has a unique serial number and fully checked in both directions on two reference playback decks. Playback results are recorded on a computer for a full analysis and verification.
Please email for detailed information, prices and availability.
